Modular Bridge, X-Beam Single Track Curved 18 in / 30°, for Bachmann E-Z Track

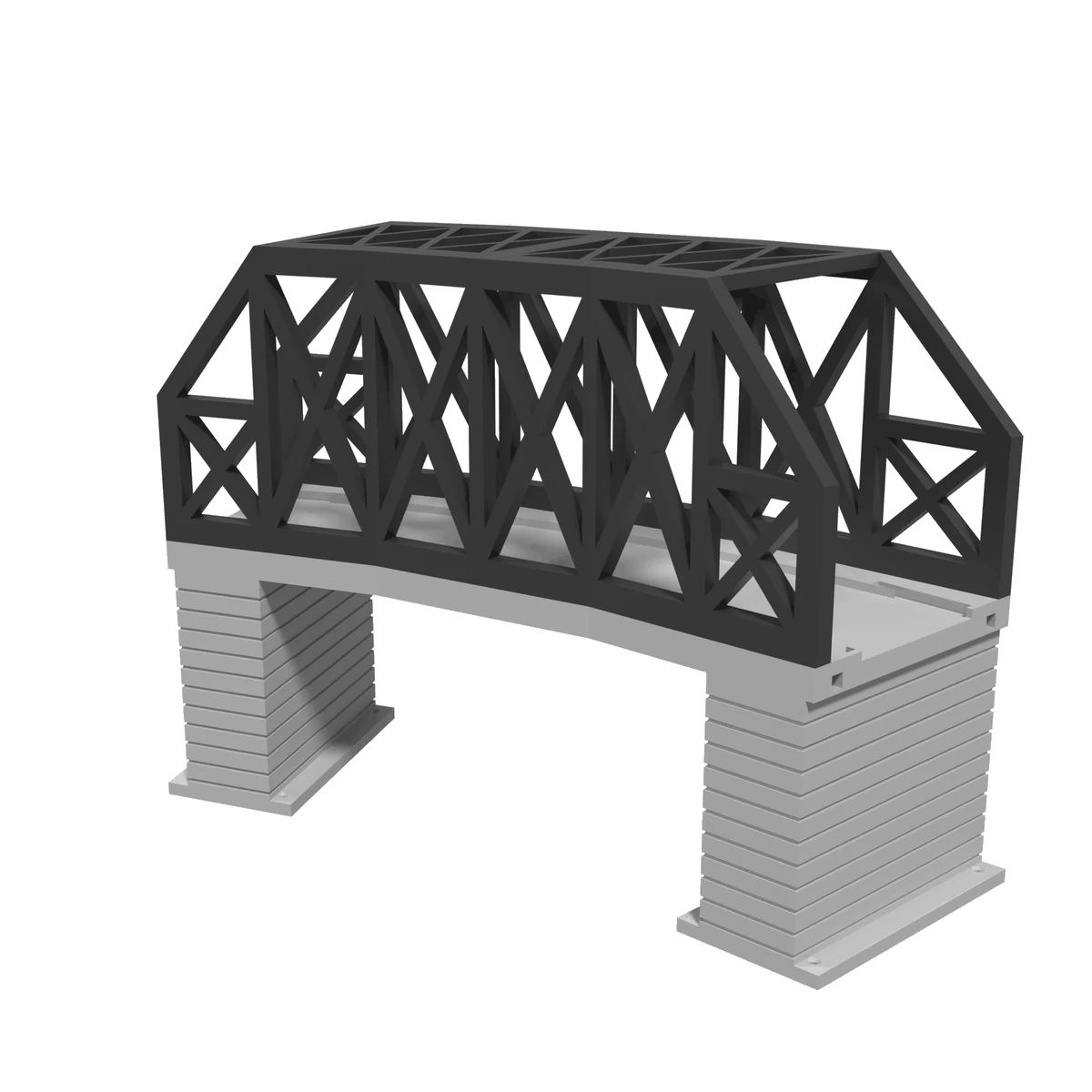

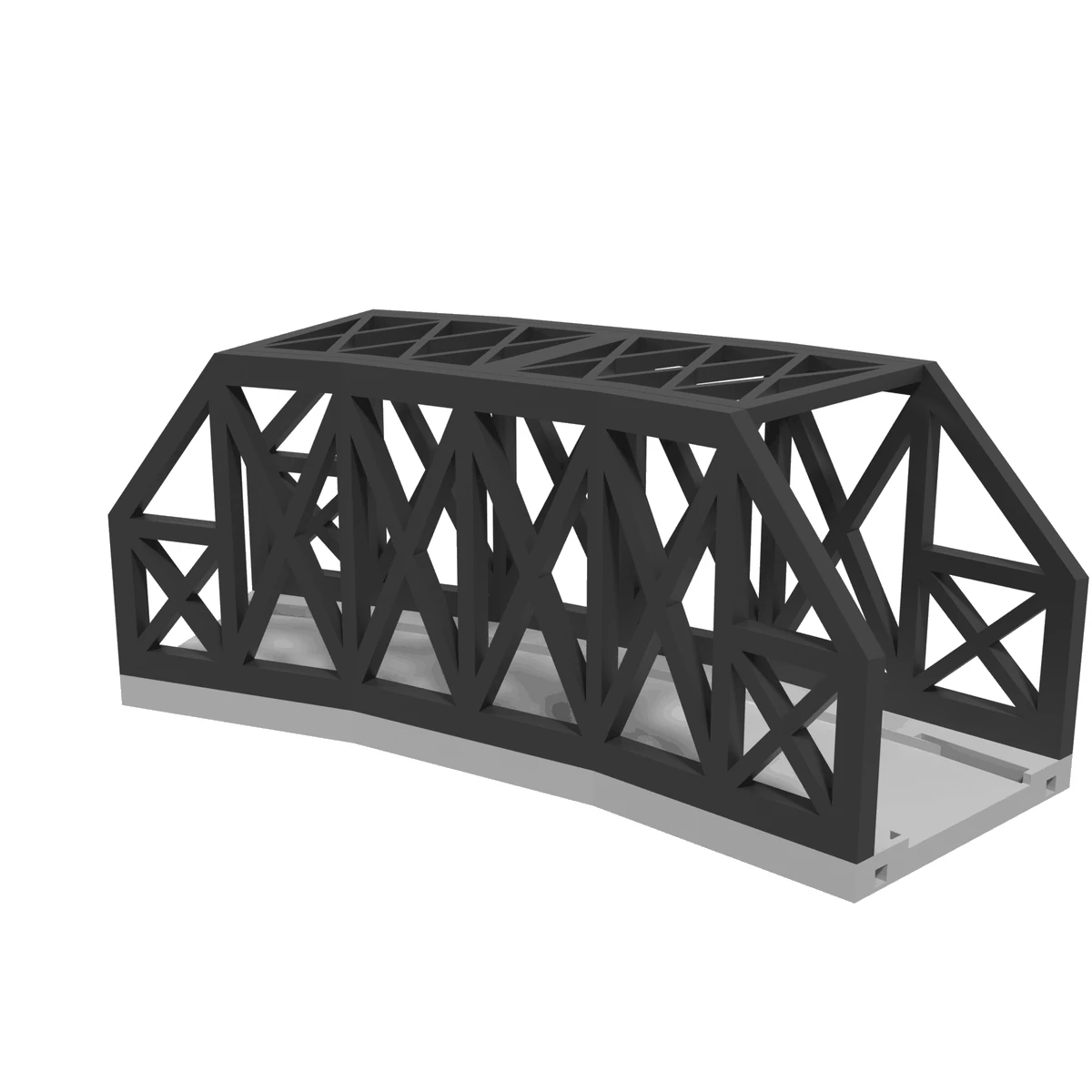

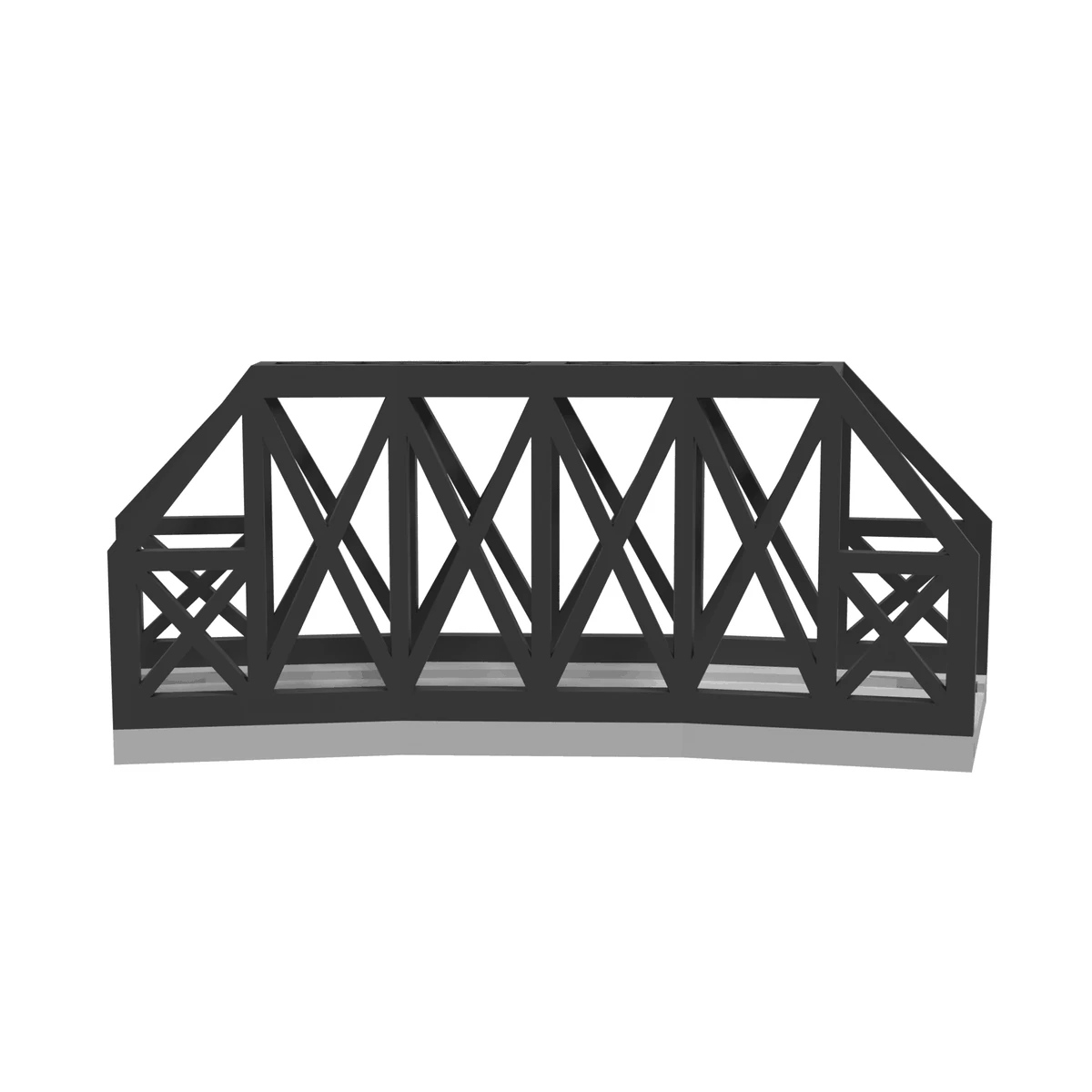

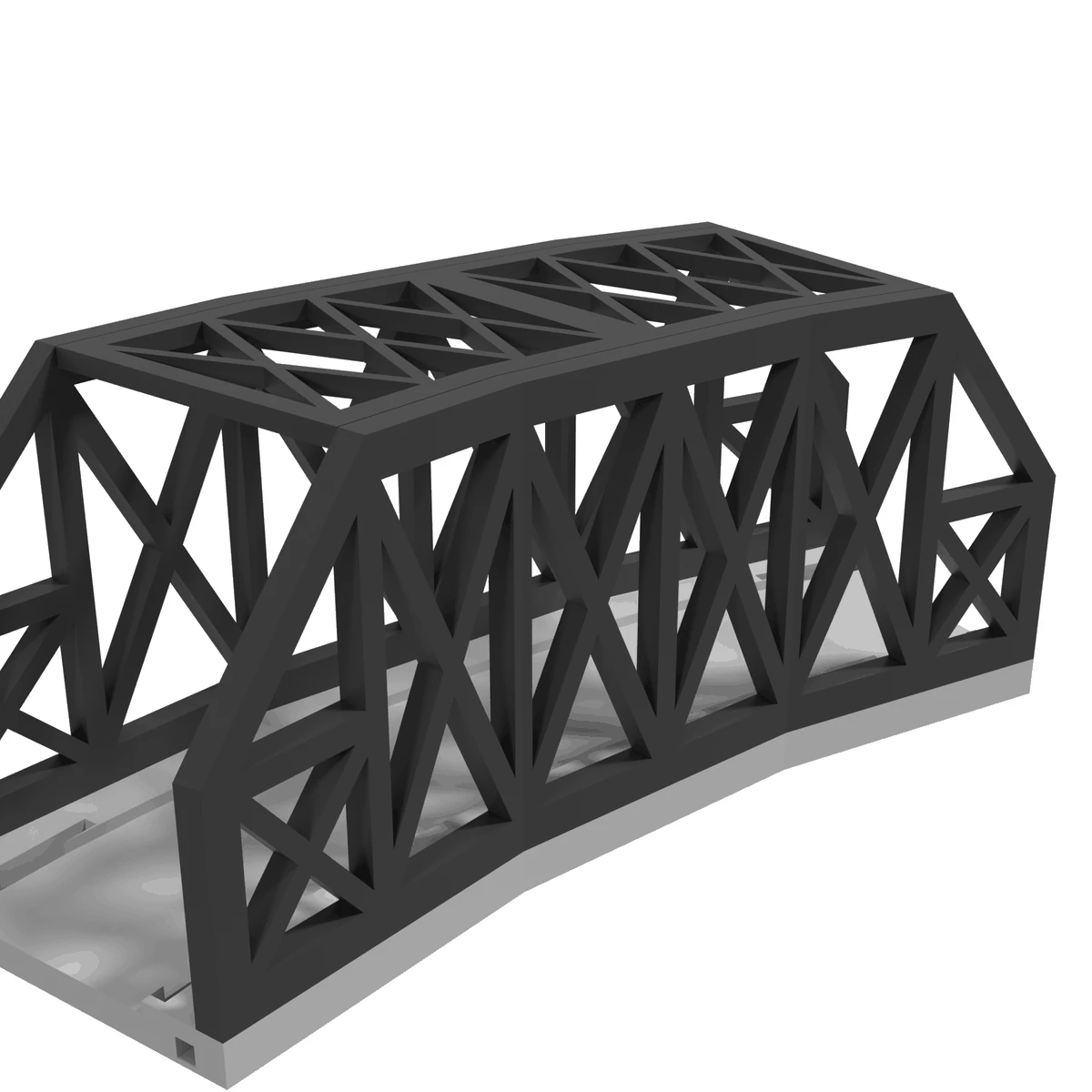

The X-Beam truss bridge, bent to follow the Bachmann E-Z Track 18 in (457 mm) curve. One bridge spans 30 degrees - exactly one E-Z 18 in curve section, 239 mm (9.4 in) of track - with the E-Z roadbed dropping into a curved channel in the deck. The truss is built from straight 10 degree panels that kink at every second vertical, so the side walls follow the curve while an 85 ft car keeps its clearance on the inside of the bend (about 74 mm / 2.9 in of headroom above the rails). Two floor plates, six X-braced wall panels and two roof lattice panels click together with pegs - no glue anywhere. The end floors carry seats for the matching curved masonry piers, which hold the bridge at joint-12 height (76.5 mm / 3 in track level) so the approach runs level on joint-13 pillars. Two bridges and our center pillar make a 60 degree bridge. Pick the floor color and the panel color separately - the preview shows exactly your combination. In the box: 2 floor plates, 6 wall panels, 2 roof panels and the end pegs. The pair of curved piers is added to the basket automatically along with this bridge - remove it there if your layout already has piers. Independently designed for use with Bachmann E-Z Track; not affiliated with or endorsed by Bachmann.

Preorder. This finish is still in development. Order now and it ships as soon as it launches.
